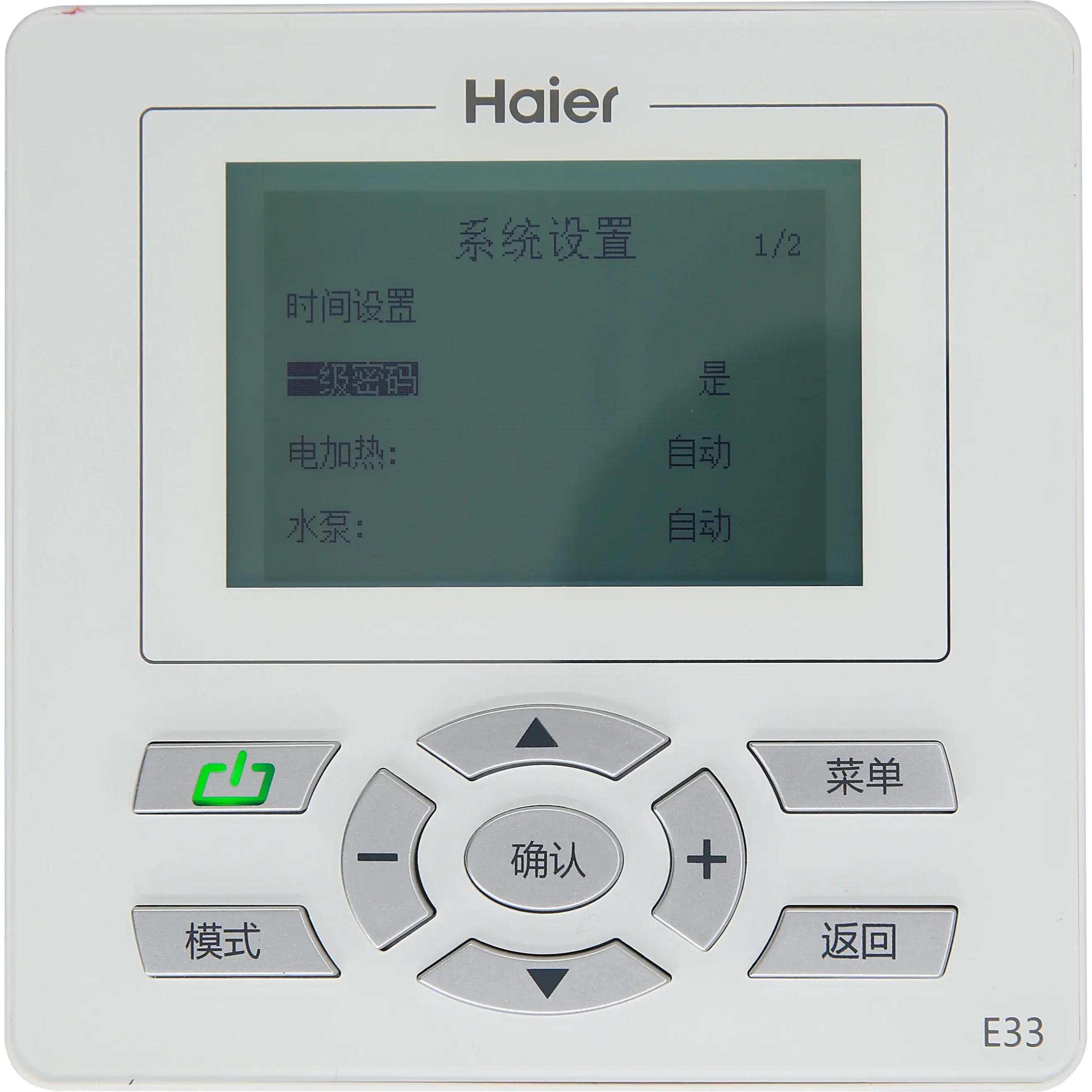

SEGMENT DISPLAY

Product Parameters Application Scenarios Central Air-ConditioningWater HeaterSmart Home Controller SEGMENT DISPLAY No. Product Model MCU Mode of Communication Size Parameter of LCD Button 1 Wired Controller 2720 R7F100GLJ2DFB ABC/HBS 86*86*31mm HTN/46PIN/75.6*49*2.4mm Touch 2 Wired Controller 1722 FM33FR058 ABC/HBS 86*86*14mm HTN/39PIN/75.6*51.6*2.4mm Touch 3 Wired Controller 1723 FM33FR058 ABC/HBS 86*86*17mm HTN/27PIN/44.2*48.2*2.8mm Mechanical 4 Wired Controller 2065 NUC220SE3AN…

ENQUIRY Now

Product Parameters

  1. Size: 86mm86mm20mm
  2. Communication Methods: RS485 or AC or 1192 Communication
  3. Control Button: Mechanical or Touch
  4. Operating Temperature: -10℃—60℃
  5. Anti-static grade: Air discharge ±20KV
  6. External power supply: AC 12V

Application Scenarios

Central Air-Conditioning
Water Heater
Smart Home Controller

SEGMENT DISPLAY
No.Product ModelMCUMode of CommunicationSizeParameter of LCDButton

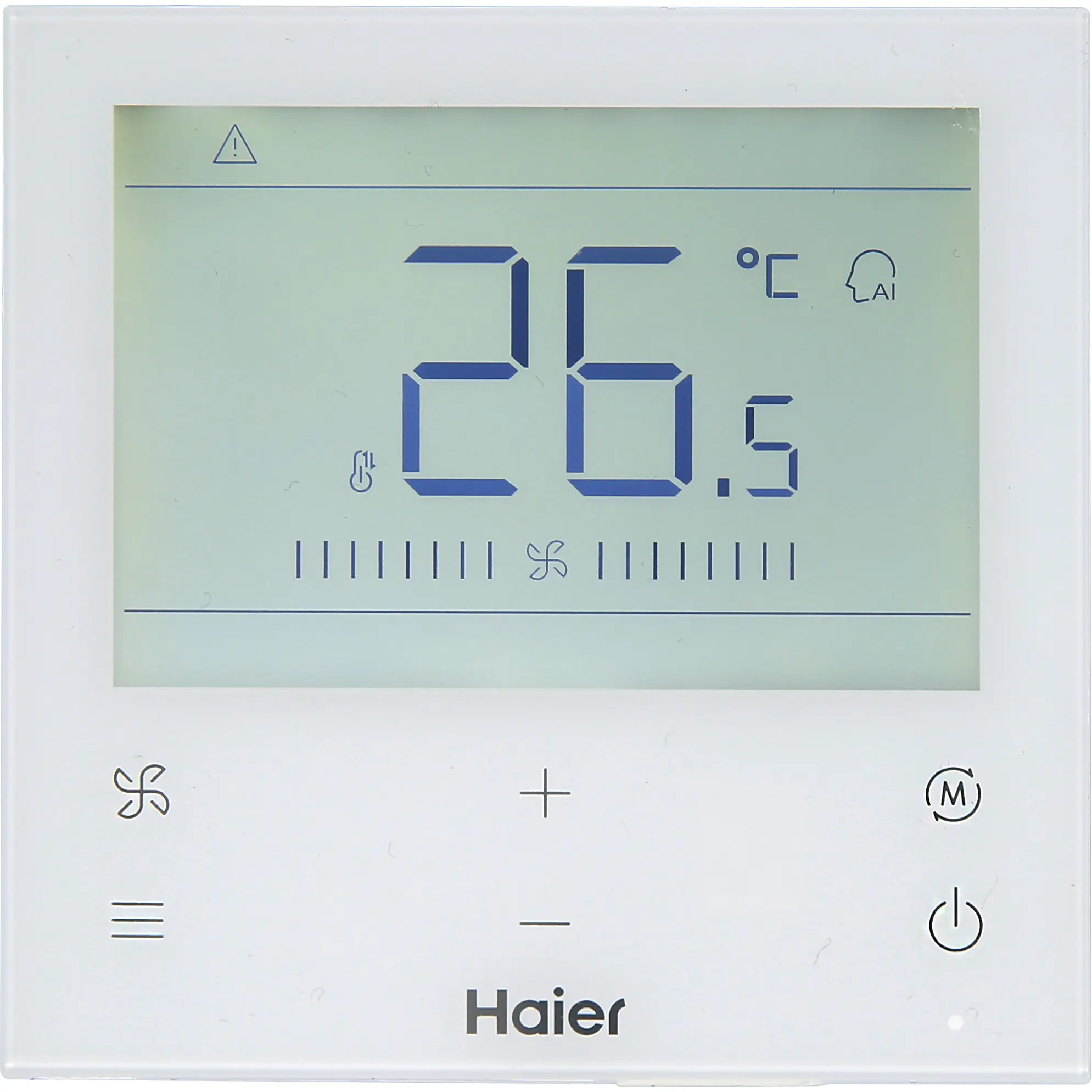

1Wired Controller 2720R7F100GLJ2DFBABC/HBS86*86*31mmHTN/46PIN/75.6*49*2.4mmTouch
2Wired Controller 1722FM33FR058ABC/HBS86*86*14mmHTN/39PIN/75.6*51.6*2.4mmTouch

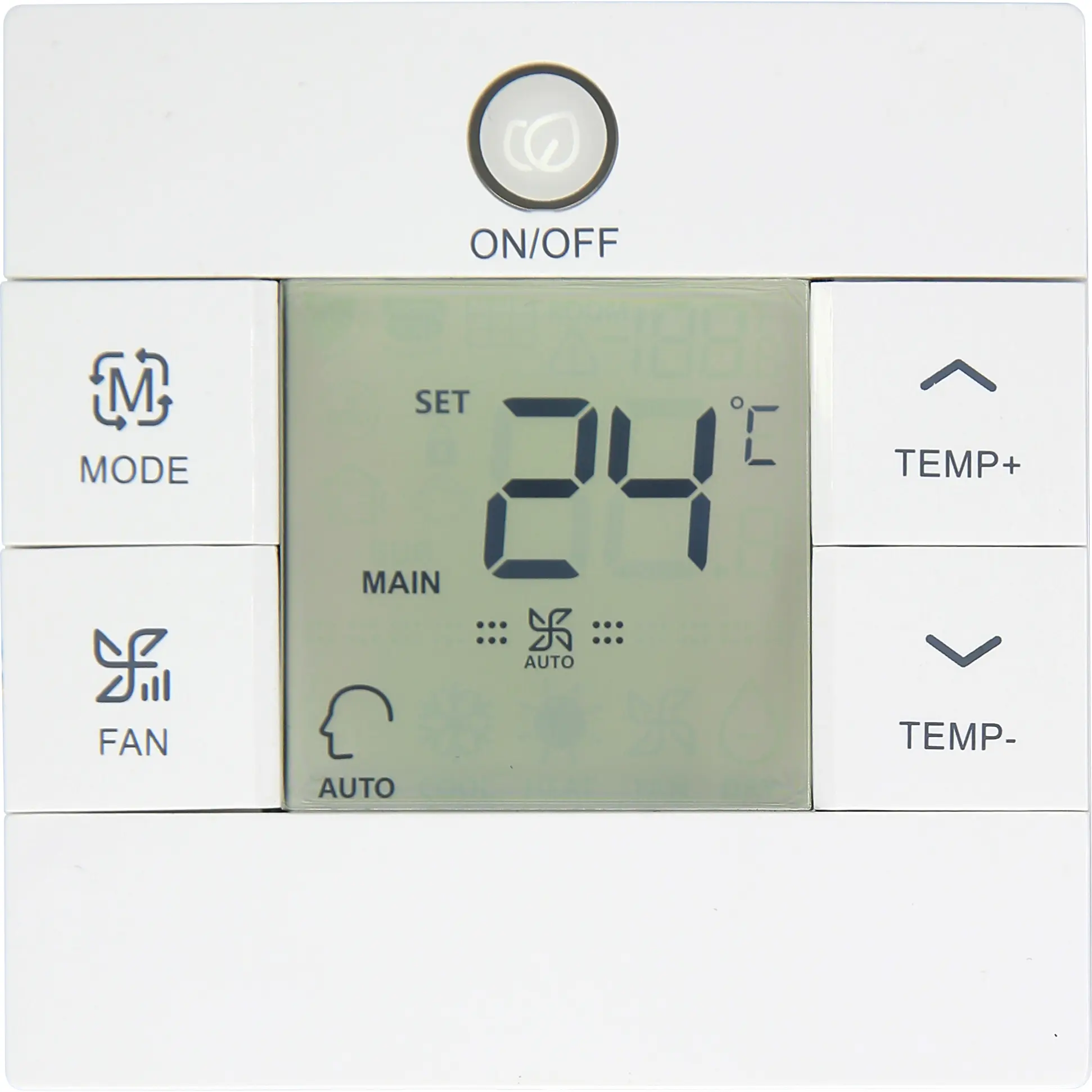

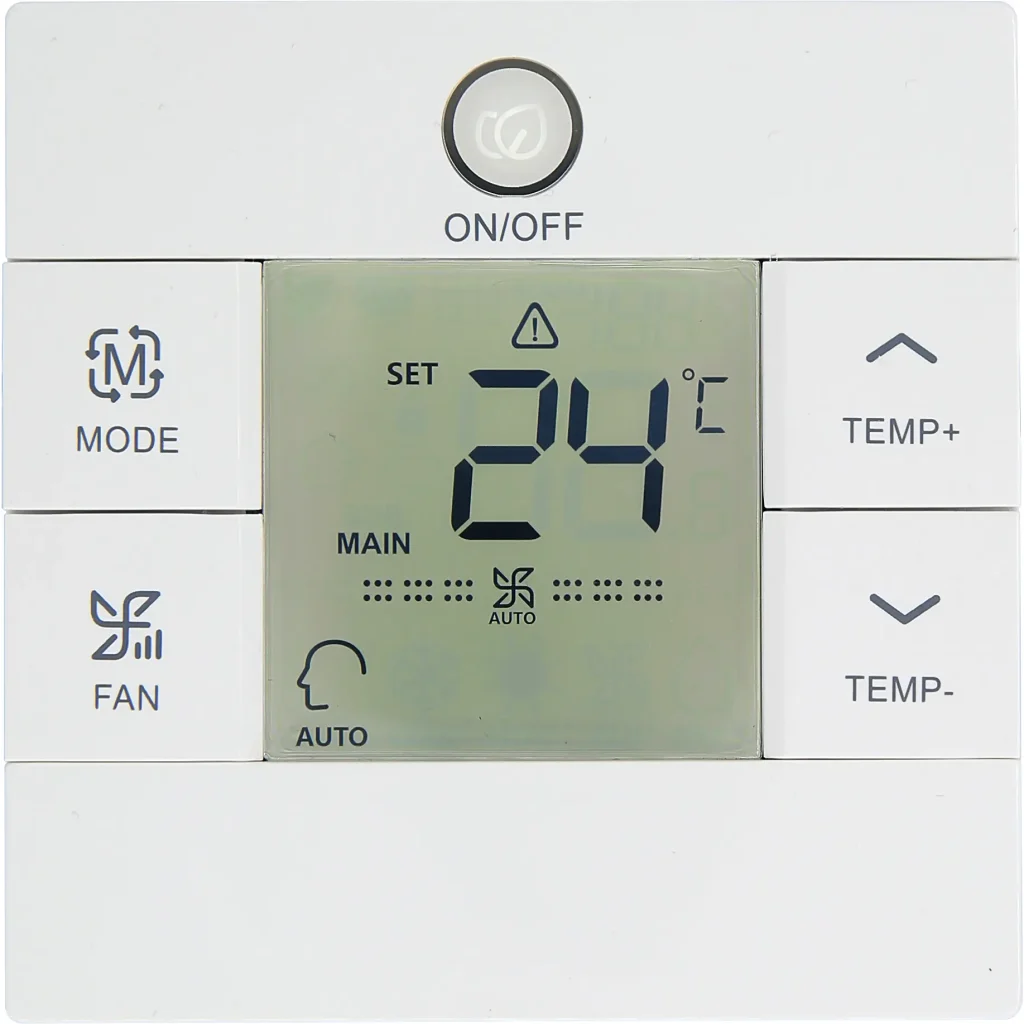

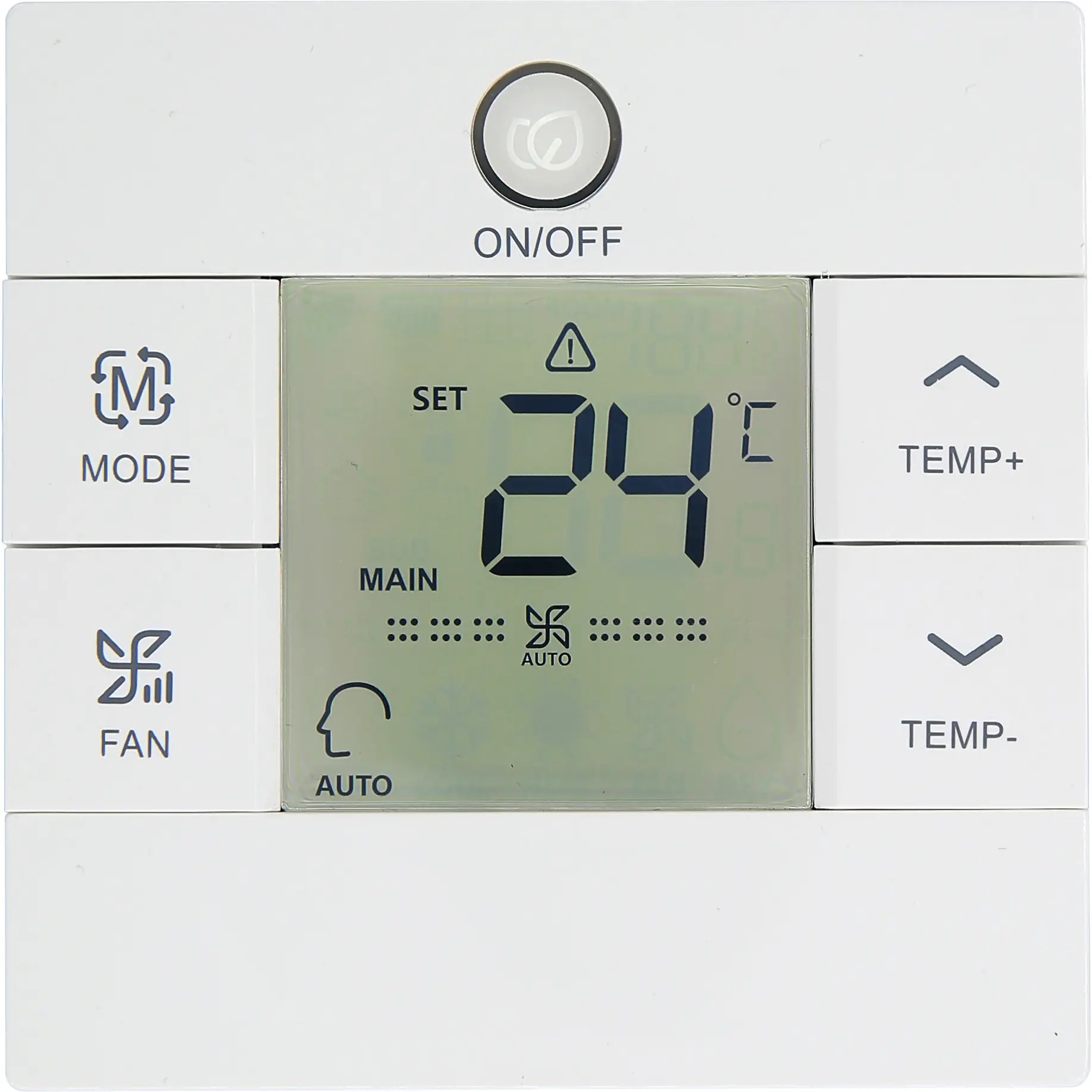

3Wired Controller 1723FM33FR058ABC/HBS86*86*17mmHTN/27PIN/44.2*48.2*2.8mmMechanical

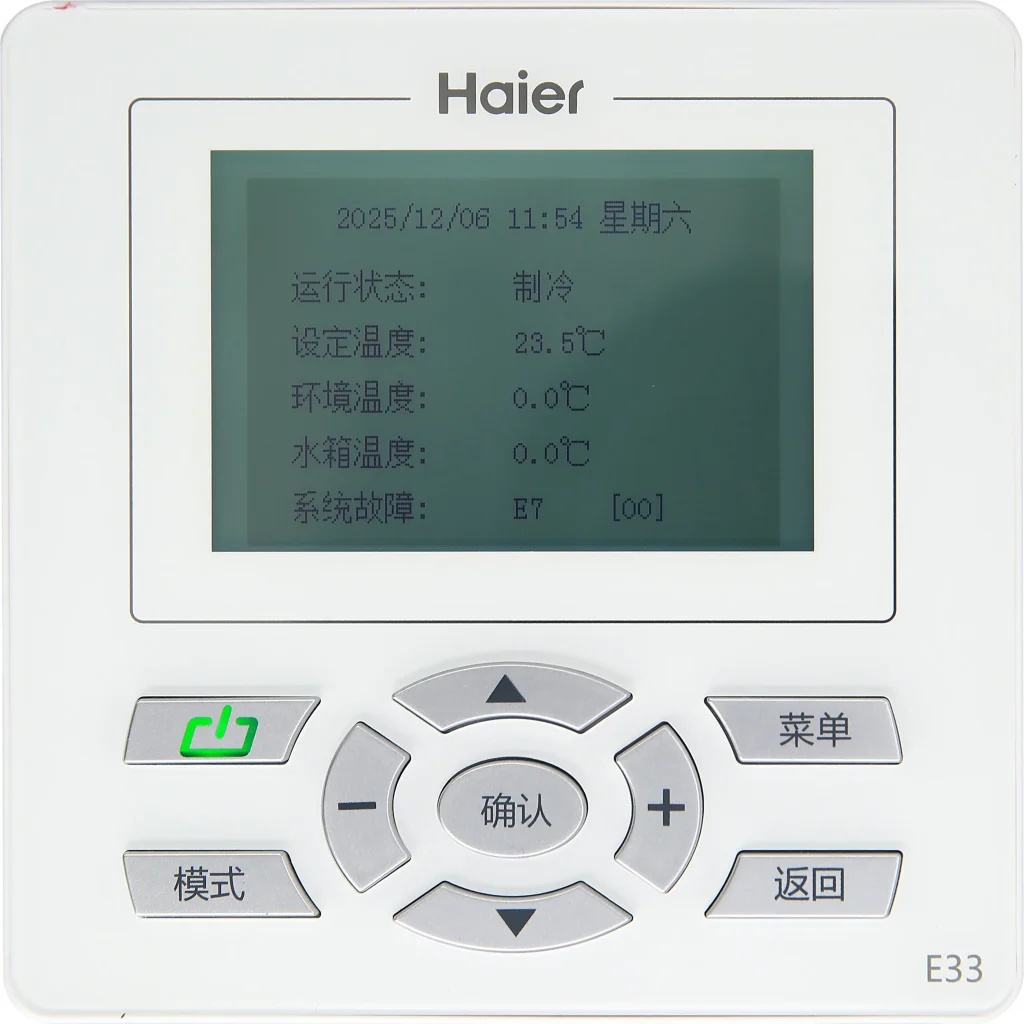

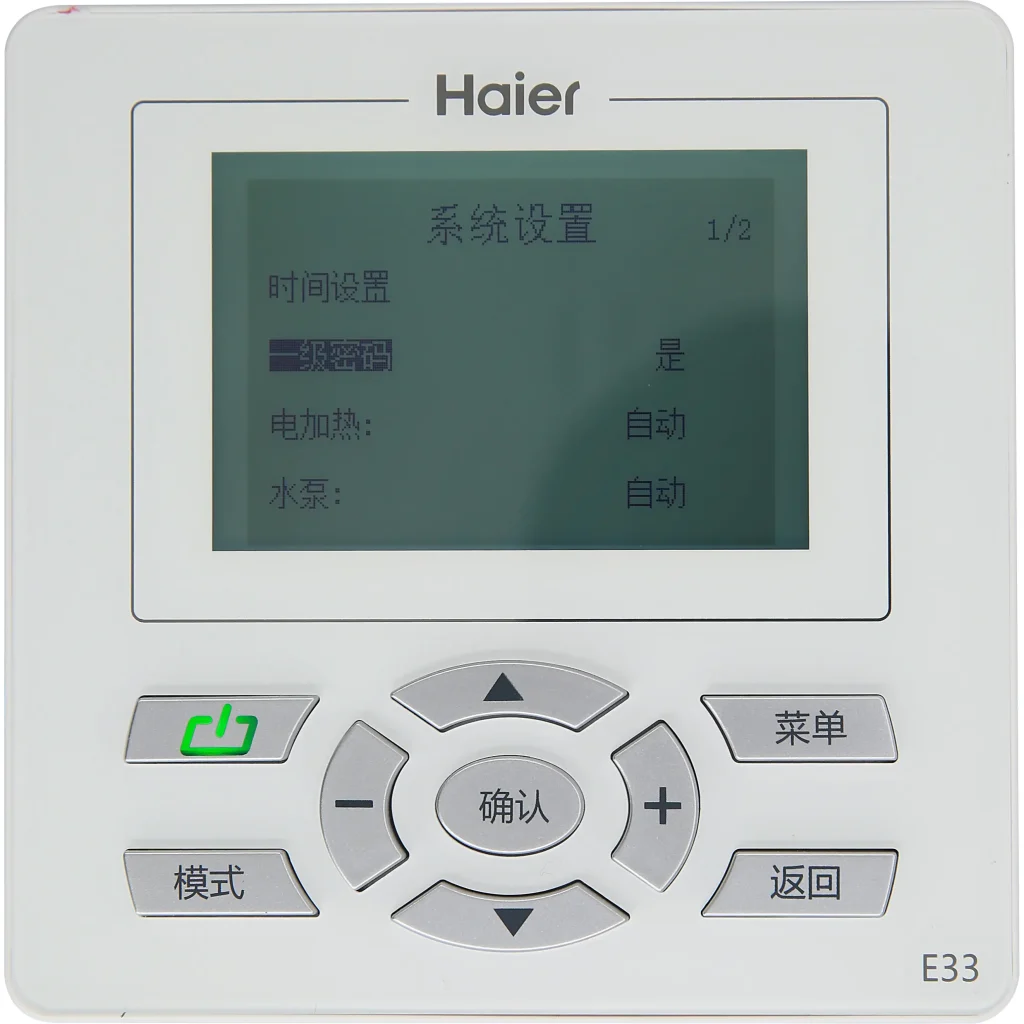

4Wired Controller 2065NUC220SE3AN485120*120*18mmFSTN-LCD/FPC/24PIN/79.7*63.5*7mmTouch

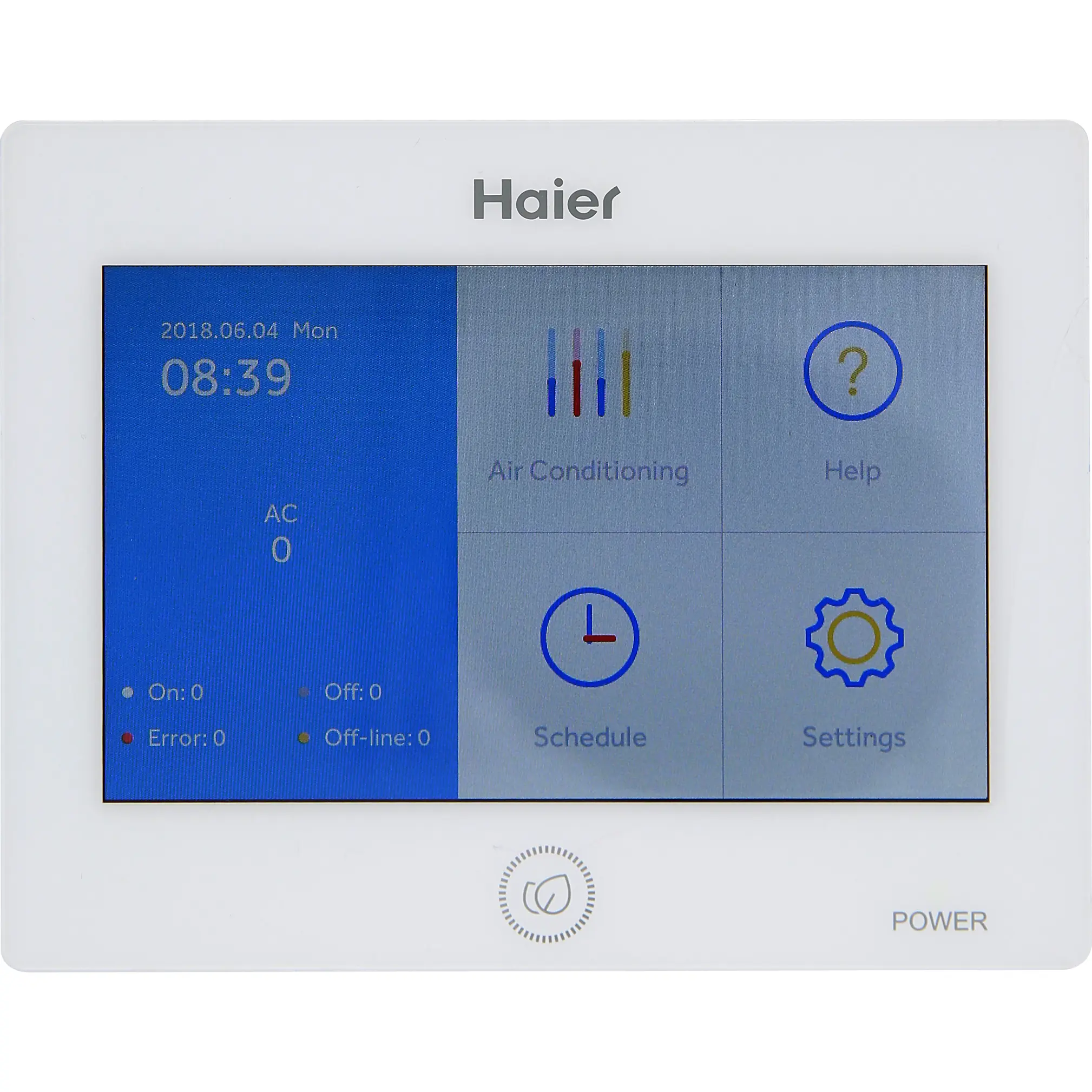

5Wired Controller 2285NUC972DF63YC485130*100*18mmTFT-LCF/5寸/800*480/3.3V/350cd/m2(typ)/G+G/TPTouch

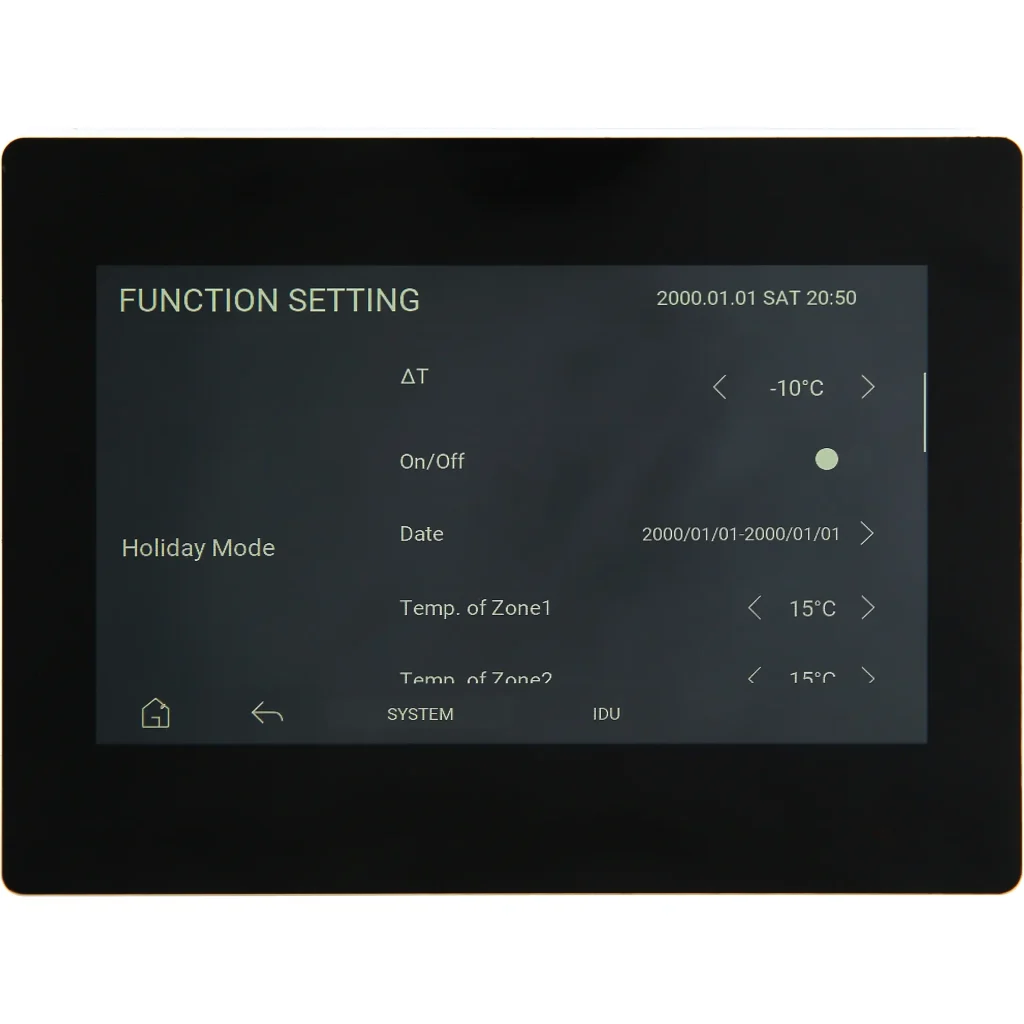

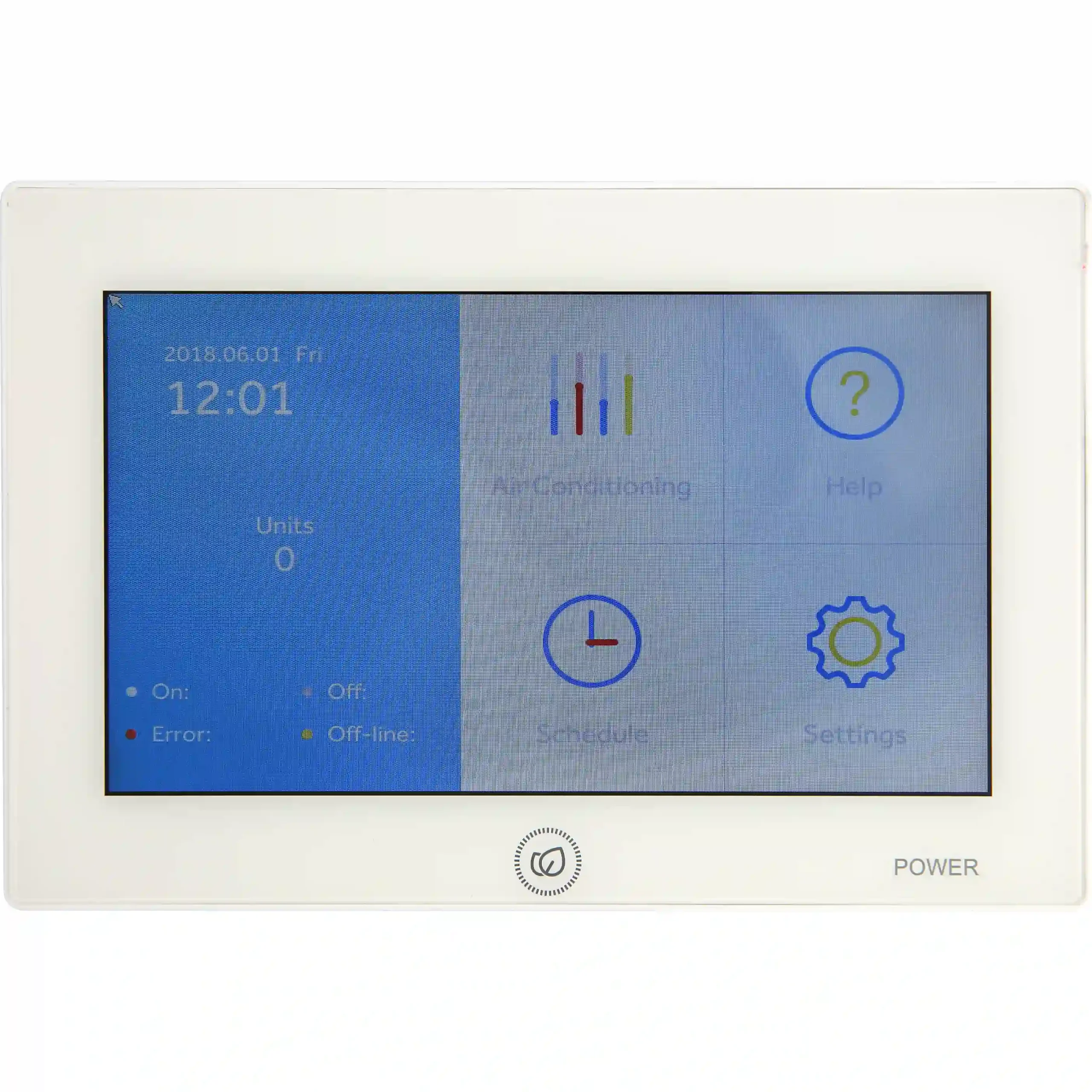

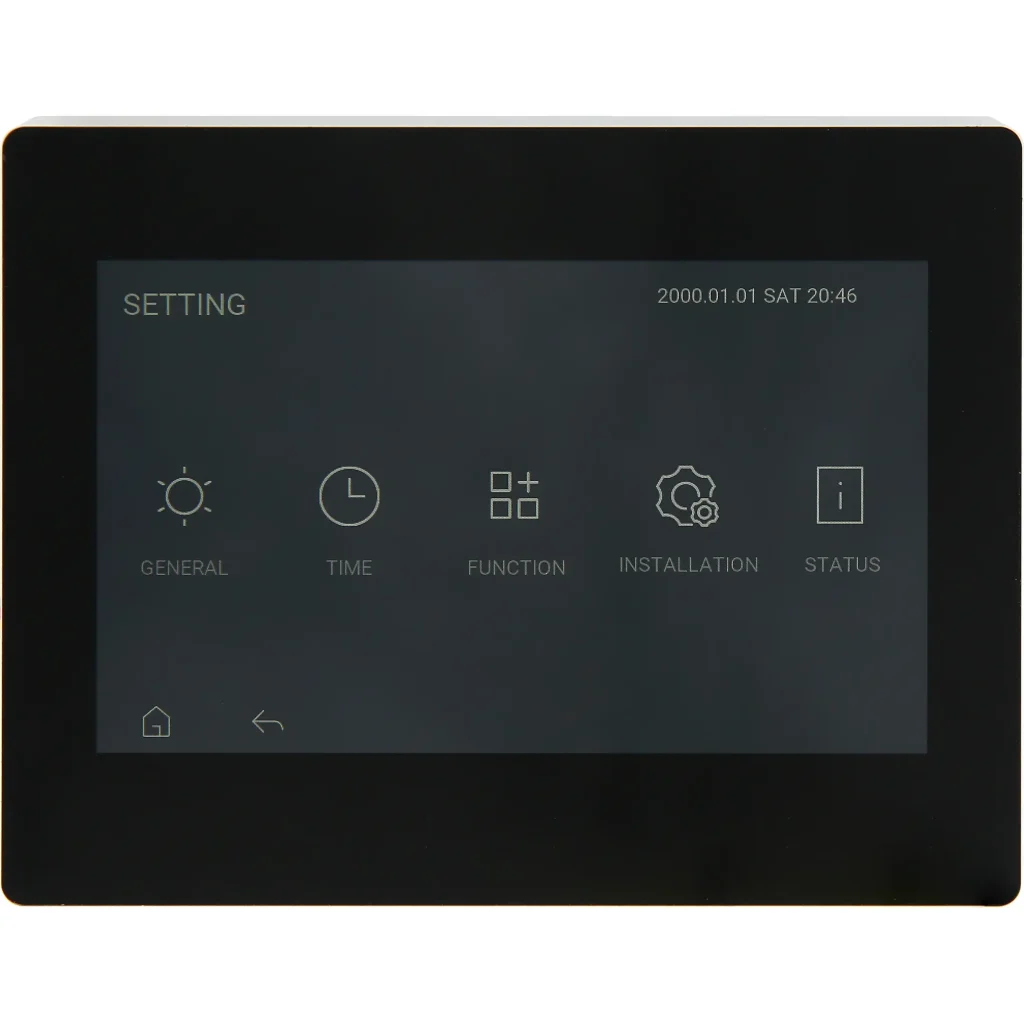

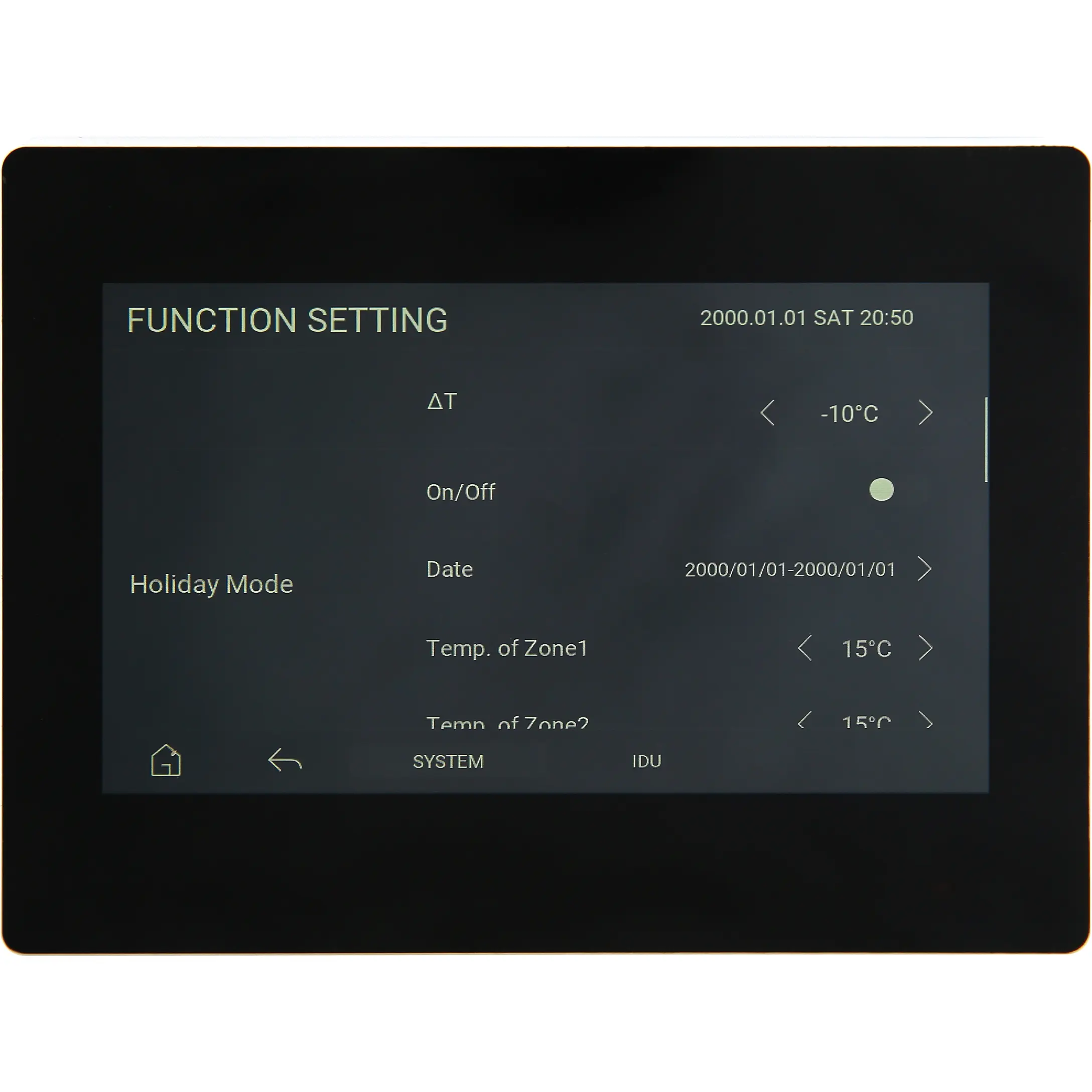

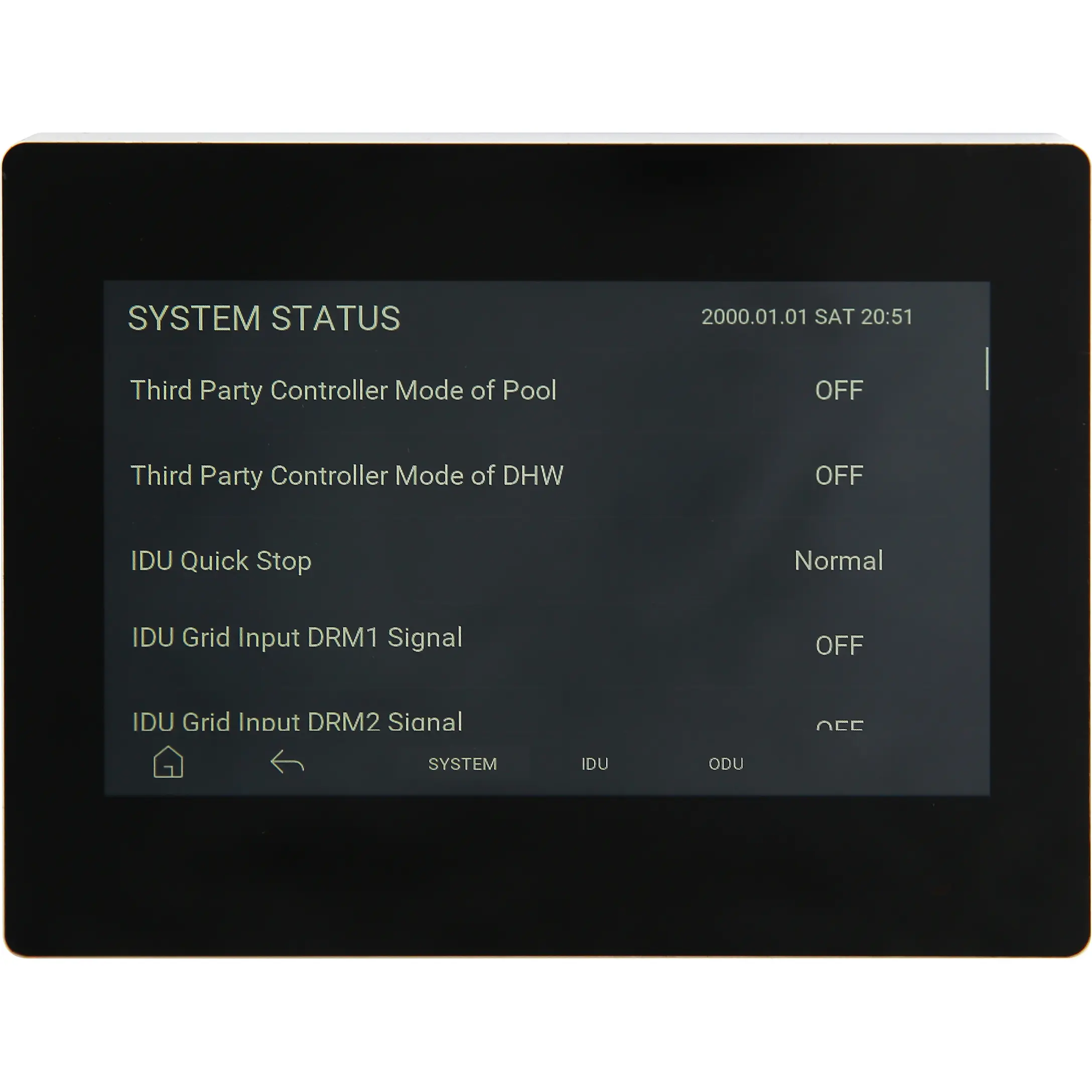

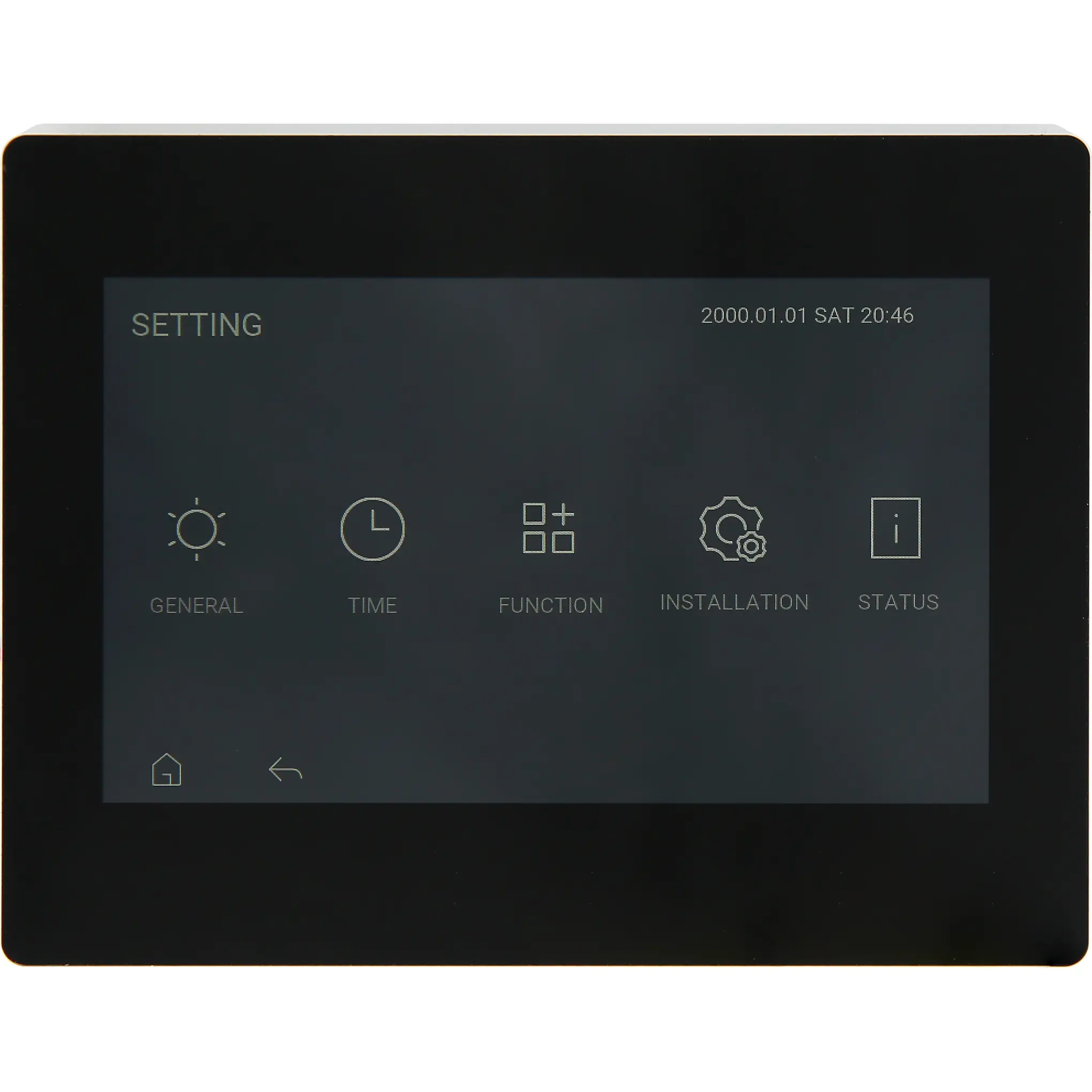

6Wired Controller 1661KNUC977DK61Y485190*125*19mmTFT-LCD/7inch/800*480mm/3.3V/320cd/m2(typ)/TPTouch
